Quick answer: A 4 Ton Floor Plate 2 Post Car Lift is a baseplate two-post hoist rated at 4,000 kg per pair of columns, in which both hydraulic cylinders, the equalizing cables and the arm linkages are routed through a low steel plate that spans the workshop floor between the two columns instead of through an overhead crossbar. That single design choice lowers the required ceiling to roughly 2.8–2.9 m instead of 3.6–4.0 m, reduces the installed cost by 15–30 % compared with a clear-floor model, and keeps the packaged column height around 2.78–2.9 m so the lift fits inside a 40HQ container without on-site fabrication. The trade-off is a raised plate of about 50–70 mm across the bay, which slows down rolling jacks and oil drains, plus a slab requirement of at least 150 mm of C25/3,000 psi reinforced concrete under each baseplate. Baseplate lifts are the right purchase when ceiling height, budget or an older building decide the project — and the wrong one when the bay must roll a transmission jack from wall to wall without a step.

What a 4 Ton Floor Plate 2 Post Car Lift Actually Is

The naming convention in this product category confuses first-time buyers, so it is worth separating the three numbers that appear in every listing.

• 4 ton — the rated lifting capacity of the pair of columns combined: 4,000 kg (8,800 lb). It is not 4 ton per column. A 4,000 kg lift means each carriage handles roughly 2,000 kg, and each swing arm carries a quarter of the vehicle mass at most, with a specified per-arm limit that is usually 1,000 kg.

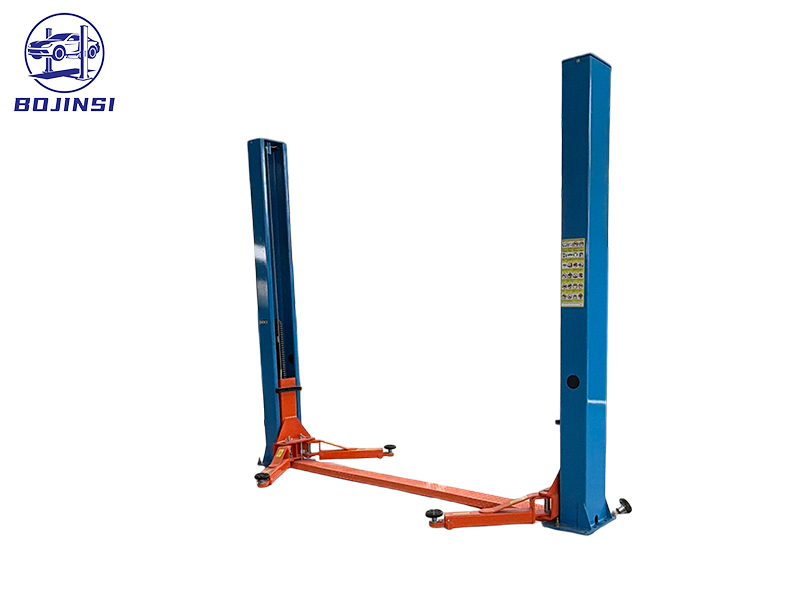

• Floor plate (baseplate) — the configuration. The two columns are tied together by a bolted steel base frame at floor level. Hydraulic hoses and steel equalizing cables run inside or underneath that frame and are covered by a beveled or diamond-pattern plate.
• 2 post — the load path. Four telescoping swing arms contact the vehicle's manufacturer-specified lifting points, the wheels hang free, and the whole underbody becomes accessible.

The distinction from a clear-floor lift is purely structural. A clear-floor unit ties the columns with an overhead gantry, which adds about 900 mm of column height and demands ceiling clearance for the tallest vehicle plus the crossbar plus working headroom. A baseplate unit ties the columns at the bottom, so column height is governed only by the maximum lifting height plus a service allowance.

How the Hydraulic Circuit and Load Path Work

Understanding the mechanism explains why the capacity numbers are conservative and where maintenance attention belongs.

1. Power unit and pump. A 2.2 kW (or 3 kW for faster lifting) single-phase 220 V or three-phase 380/415 V motor drives a gear pump inside an oil reservoir of 8–12 L. Typical lift time to 1,800–2,000 mm is 45–55 seconds at 60–70 bar working pressure.
2. Two cylinders, one circuit. Oil is pushed into both hydraulic cylinders — bore typically Ø60–80 mm with a Ø45–50 mm hard-chromed piston rod — so both carriages rise together. Each cylinder is double-sealed and pressure-tested at 1.5× rated working pressure before shipping.

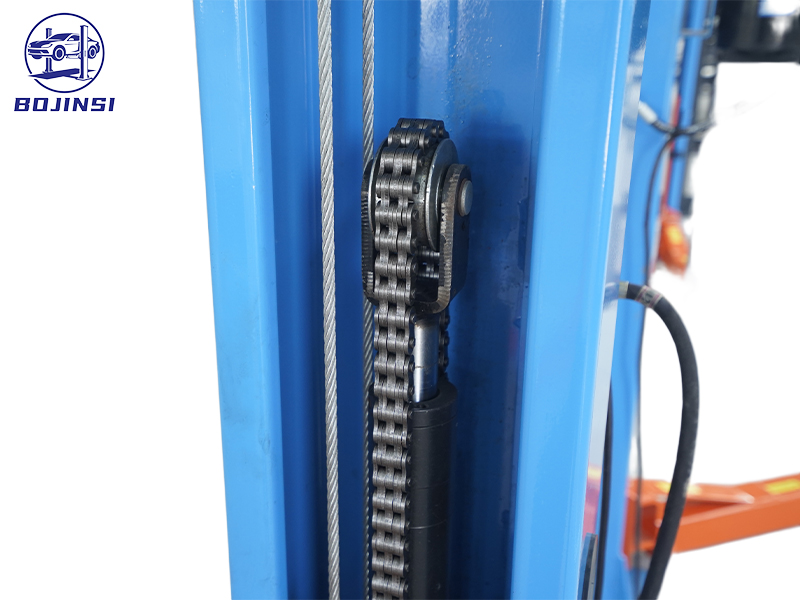

3. Synchronization. Hydraulic flow alone does not guarantee level carriages, so steel wire ropes or leaf chains (typically 6–10 mm, with a breaking strength well above 5,000 kg) link the two carriages through pulleys. Equal tension on both cables is the single most important installation measurement.
4. Mechanical locking. A spring-loaded pawl in each column engages a ladder of locking positions at roughly 50–75 mm intervals. The hydraulics only lift; the mechanical locks carry the vehicle while a technician works underneath. Single-point release lowers both pawls simultaneously from one lever between the columns.
5. Load path into the slab. Each column baseplate is fixed with 4–6 anchor bolts, typically M16–M20 chemical or wedge anchors set 110–140 mm deep. The pull-out tension on a fully loaded column can approach 3–4 tonnes per baseplate, which is why the concrete specification cannot be treated casually.
6. Fail-safe devices. An anti-surge / explosion-proof valve in each cylinder blocks the port if a hose bursts, freezing the carriage in place. A hose-burst valve plus mechanical locks plus arm restraints is the three-layer safety model that inspectors look for.

Floor Plate vs Clear Floor vs Four Post: Choosing by Use Case

The table below is the decision matrix most workshop owners need before they request quotations. Capacity figures assume a class-4 passenger vehicle mix with occasional light commercial use.

Two less obvious points matter. First, a four-post lift is not a substitute for a two-post lift in brake and suspension work; runways block the underbody unless bridge jacks are added. Second, a baseplate lift can be converted into an alignment bay by adding turn plates at the front and slip plates at the rear, provided the plate does not interfere with the plate housings — check the geometry before ordering.

Key Specifications to Compare Line by Line

These are the figures to collect from every supplier so quotations can be compared on equal terms rather than on price alone.

A 4,000 kg rating with 1,820 mm lifting height and a 2,860 mm column is a common export configuration: it clears a standard 3 m workshop ceiling, fits 20-foot container loading in pairs, and still lifts a 2,800 kg SUV with 30 % margin.

Installed Cost: Where the Money Actually Goes

Equipment price is only 45–60 % of a commissioned bay. A realistic budget for a single 4 t baseplate lift, based on typical export and import markets, breaks down roughly as follows.

The slab line is where projects overrun. Coring a test hole and measuring thickness before ordering is a two-hour task that prevents a five-figure surprise. A baseplate lift is more forgiving than a clear-floor lift because the load is spread over a longer anchor pattern, but "more forgiving" is not the same as "safe on 80 mm of unreinforced screed".

Site Readiness: Four Numbers to Measure Before You Order

• Ceiling clearance at the lowest obstruction. Measure to the garage door track, light fitting or sprinkler head, not to the slab soffit. Required clearance equals column height plus the height of the tallest vehicle's roof above the pads, plus 150–300 mm of working allowance.
• Slab thickness and strength. Minimum 150 mm of reinforced concrete at 3,000 psi / C25, fully cured (28 days). Core-drill one 50 mm test hole near each column position and check for voids, pipes and post-tensioning tendons before drilling.
• Bay width and drive-through. Overall width 3,400–3,560 mm leaves 800 mm of clear walkway on each side for door opening and tool access. Confirm the approach path has no pillar within 2.5 m of the entry side.
• Electrical supply. Single-phase 220–240 V at 16 A, or three-phase 380–415 V at 16–32 A. Use a dedicated circuit with a residual-current device, and confirm rotation direction on three-phase motors before the first lift.

Application Scenarios Where Floor Plate Wins

Baseplate lifts are not a compromise product; they are the correct product in several identifiable situations.

• Older urban workshops with 2.9–3.2 m ceilings. Retrofitting a clear-floor lift would require raising the roof, so baseplate is the only compliant option.
• Home garages and enthusiast workshops. A 3 m garage with a sectional door and tracks leaves too little headroom for an overhead gantry, but ample room for a 2,860 mm column.
• Tyre and brake fast-fit centres. Vehicles are raised 600–900 mm for wheel-off work; the floor plate is rarely in the way because the technician stands outside the vehicle line.
• Vehicle inspection lanes. Underbody and brake inspection at 1,500–1,800 mm is the dominant task, and throughput is governed by pad positioning, not by floor obstruction.
• Fleet and municipal maintenance depots. Predictable vehicle mix (sedans, vans, light pickups) means a symmetric arm set covers the fleet without adapters.
• Franchise dealer satellite workshops and mobile service units where lifts are relocated between leased buildings; the simpler anchoring pattern reduces relocation cost.
• Export-oriented distributors who need container-friendly packaging without welded-on overhead frames.

The mirror-image cases are just as clear: high-volume multi-bay shops with transmission and driveline work, and any bay where a rolling jack must travel the full length of the vehicle, are better served by a clear-floor lift and a taller building.

Safety Devices, Standards and Certification

Market access depends on documentation as much as on steel. A lift that cannot produce the right certificate file will not pass inspection in most regulated markets, whatever its build quality.

• EN 1493 is the European safety standard for vehicle lifts and is the reference most CE declarations cite. Self-propelled and mobile lifts fall under different clauses than fixed two-post lifts, so confirm the exact annex in the declaration.
• Machinery Directive 2006/42/EC (now superseded in the EU by the Machinery Regulation 2023/1230 from January 2027) requires a technical file, risk assessment, declaration of conformity and CE marking.
• ANSI/ALI ALCTV in North America covers third-party tested construction, and ANSI/ALI ALOIM sets the in-service inspection regime — annual inspection by a qualified person, with records retained.
• ISO 9001 on the manufacturing side indicates documented welding, painting and test procedures, which is what most importers actually audit.
• Load proof testing. Expect 115 % dynamic and 150 % static proof load before shipment, with the serial number recorded on the test certificate and the column plate.

On the machine itself, verify these items individually rather than accepting "CE certified" as a complete answer: dual mechanical safety locks with single-point release, automatic arm restraints that engage as the carriage rises, anti-surge valves on both cylinders, hose-burst protection, an emergency lowering function, rubber door guards, a padded overhead shut-off where applicable, and a load-rating plate showing capacity, serial number and test date.

Installation Sequence That Avoids Rework

1. Mark out and verify. Chalk the column centre-lines, confirm squareness with diagonals within 3 mm, and re-check for embedded conduits with a scanner.
2. Drill and clean. Drill to the anchor manufacturer's depth, blow and brush each hole, and keep dust out of the anchor zone. Dirty holes are the most common cause of anchor pull-out.
3. Set anchors and level. Shim the baseplates to within 1 mm across the bay, torque anchors in three passes to the specified value (commonly 150–220 N·m for M16–M20), then re-check the torque after 24 hours.
4. Assemble arms and locks. Fit carriages, arms, arm restraints and lock pawls, and confirm each pawl drops fully into its ladder slot by hand.
5. Tension the equalizing cables. Raise the carriages to mid-height and adjust to equal tension so both locks click at the same instant on every stroke.
6. Connect hydraulics and power. Fill with ISO VG 32 or 46 anti-wear oil, bleed the circuit by cycling the lift three to five times without load, and check motor rotation.
7. Prove the installation. Run empty, then with a representative vehicle at the lowest lock, verify pad contact on all four points, then complete a 115 % proof load check if local rules require it before handover.

Maintenance Schedule and Realistic Uptime

A well-run baseplate lift typically returns 8–12 years of daily service before major refurbishment. The schedule below is the one to put on the bay wall.

Wear parts that should be stocked: two arm pads, one set of arm pins and restraint springs, one hydraulic hose set, and a spare lock pawl spring. Consumable cost typically runs 1–2 % of equipment value per year, and pad replacement is the item most often deferred too long — hardened, oil-soaked pads are a slip risk, not just a comfort issue.

Twelve-Point Buyer Checklist

1. Rated capacity confirmed at 4,000 kg with at least 20 % headroom over the heaviest vehicle you expect to service, including a loaded van or EV.
2. Per-arm capacity stated explicitly — not just the total — and compatible with your vehicle lift-point spread.
3. Column height measured against the lowest ceiling obstruction, with the garage door in the raised position.
4. Slab verified at 150 mm minimum, reinforced, at least 28 days cured, and free of post-tensioning tendons at the anchor locations.
5. Arm configuration (3+2 or 2+2, symmetric or asymmetric) matched to the actual vehicle mix, not to the last car lifted.
6. Minimum pad height and adapter set suited to your lowest vehicle; low-profile pads included for sports cars and EVs.
7. Dual mechanical locks, automatic arm restraints, anti-surge valves and emergency lowering all present and demonstrable.
8. Certification file complete: CE declaration with EN 1493 reference, load test certificate with serial number, and ISO 9001 for the factory.
9. Electrical specification matched to the site supply, with motor voltage and phase confirmed in writing before the crate ships.
10. Spare parts list and lead time for pads, pins, hoses and seals — ideally a distributor with regional stock.
11. Installation documentation: layout drawing, anchor pattern, torque values, commissioning checklist, and a manual in your language.
12. Warranty terms reviewed for structure, cylinders, motor and powder coating separately, with the claim process and response time in writing.

Any supplier unable to answer points 2, 3 and 8 in writing before payment is a risk to the project, regardless of price. Conversely, a supplier who sends a layout drawing dimensioned to your bay, an anchor schedule and a serial-numbered test certificate is usually telling you the truth about the rest.

Frequently Asked Questions

Is a 4 ton floor plate lift strong enough for an SUV or an electric vehicle?

For most passenger SUVs and crossovers, yes. A mid-size SUV typically weighs 2,000–2,600 kg and a full-size electric SUV 2,600–3,100 kg, both inside a 4,000 kg rating with margin. The limiting factor is rarely total weight but the per-arm load and the pad positions: a 3,000 kg EV with a floor-mounted battery may not have lift points where your arms reach, so confirm the vehicle's lift-point drawing against the arm reach before committing. Above about 3,200 kg, move to a 4.5 t or 5 t model.

What ceiling height do I need for a floor plate 2 post lift?

Plan on 2.9–3.1 m of clear height. The column itself is usually 2,780–2,900 mm tall, so a 3 m ceiling works, but you must also measure to the lowest obstruction when the garage door is up. If you need to lift a 2 m tall van to 1,800 mm, the roof rises to about 3,800 mm above the floor, which exceeds any 3 m ceiling — in that case, lower the lift target height or change the vehicle mix.

Can I install a floor plate lift on an existing concrete floor?

Only if the slab is at least 150 mm thick, reinforced, sound and fully cured. Core a test hole and check for voids and embedded services. If the slab fails, the options are a local reinforced pad poured around each column position with proper keying, or a full bay re-pour; both are cheaper than an anchor pulling out under load. Never install on asphalt, block paving, timber, or a thin screed over insulation.

Are the hydraulic hoses and cables exposed on a floor plate lift?

They are routed between the columns and protected by a beveled or diamond-pattern steel cover plate, typically 50–70 mm high at its highest point and 16–20 mm thick. Nothing load-bearing is exposed, but the plate can collect dirt and oil, so include channel cleaning in the weekly routine. Some designs route the hoses through a raised centre hump rather than a full plate; enquire which layout your model uses, since it affects where you can roll a jack.

What is the difference between symmetric and asymmetric arms on a baseplate lift?

Symmetric arms are equal length and centre the vehicle between the columns, which suits vans and long-wheelbase vehicles. Asymmetric arms are shorter at the front and longer at the rear, setting the vehicle further back so the front doors open clear of the columns — usually the better choice for car-focused service work. Many modern 4 t models offer a versymmetric or dual-position layout; ask which position the load chart is written for, because the rating may differ between the two.

How much does it cost to run a 4 ton two post lift?

Energy use is modest: a 2.2 kW motor running roughly 10 lift cycles a day for 50 seconds each consumes about 0.3 kWh per day, or 70–90 kWh per year — a small line item next to lighting and compressed air. The real operating costs are hydraulic oil (a 10 L change every 3–5 years), pads and seals, and the annual statutory inspection.

How often must a car lift be inspected after installation?

Most European jurisdictions require inspection before commissioning and then at intervals set by national regulation — commonly every 12 months, and in some countries every 6 months for lifts above a specified lifting height. North American practice under ANSI/ALI ALOIM calls for annual inspection by a qualified lift inspector with records kept on file. Regardless of local law, a documented daily pre-use check and a quarterly preventive maintenance visit will catch the failures that matter: cable wear, loose anchors and stuck pawls.

Can a floor plate lift be moved to another building later?

Yes, and this is one of its practical advantages. The columns unbolt from the baseplate, the anchors are cut flush, and the unit can be reinstalled with new anchors at the new site — provided the concrete there also meets specification. Budget for new anchors, new hydraulic oil, a fresh equalizing adjustment and a repeat inspection. Expect the relocation to cost 25–40 % of a new installation, and check that the warranty transfers.

What voltage and breaker do I need?

Single-phase models normally run on 220–240 V at 16 A; three-phase export models on 380–415 V at 16–32 A. Install a dedicated circuit with a residual-current device rated for the motor, and confirm phase rotation on three-phase units before the first lift — a reversed pump will run but deliver no pressure. Where supply is unstable, a 3 kW motor with a soft-start or a voltage-stabilised supply protects the pump.

Why is my new lift slower than the quoted lifting time?

The usual causes, in order of frequency: air trapped in the circuit (cycle the lift without load three to five times and top up the reservoir), incorrect oil viscosity in cold conditions (ISO VG 32 for cold workshops, VG 46 for warm climates), a clogged suction filter screen, or a relief valve set too low. If lifting time degrades gradually over months, check cable tension and arm pivot lubrication before suspecting the pump.

Summary: A Practical Decision Rule

Buy a 4 ton floor plate two post car lift when the building decides for you — ceiling under 3.2 m, older slab, tight budget, or a bay that will be relocated in a few years. Choose clear floor when the workflow decides for you: high job volume, transmission and driveline work, and a building that can give you 4 m of clearance. Either way, the purchase only succeeds if four numbers line up before the crate arrives: capacity against the heaviest vehicle, column height against the lowest obstruction, slab thickness against the anchor schedule, and motor specification against the site supply. Get those right, add a documented maintenance routine, and a baseplate lift will run a decade of daily service without ever needing the roof raised.
